48V 105Ah Lithium Battery Pack Complete Kit for Cart Configuration
$1,988.00
Reg. Price $2,599.00 You Save $611.00
Use Code Save100 at checkout and save $100.00
This battery will fit any 48v E-Z-GO RXV model golf cart.
Includes every RXV model E-Z-GO cart (2008-Present):
- Fleet
- Freedom
- Shuttle 2+2
This PowerStar 48V 105Ah lithium battery kit gives your E-Z-GO RXV cart a powerful new life.
Using Lead acid batteries in Series?
Upgrading to a lithium means no maintenance, less wires and balance issues (1/4 the weight), a 10x longer lifespan (>3500 life cycles) and up to 45 miles longer range. Not only this, but a faster charge time so you can get back to the game as quick as possible.
Make your E-Z-GO RXV cart more powerful and reliable than ever before with a PowerStar battery!
Battery kit includes both a battery and charger, plus accessories (see below)!
SEE BATTERY AND CHARGER SPECIFICATIONS BELOW!
6 Flooded Lead Acid Batteries VS 1 PowerStar LiFePO4 Battery
- 48 Volts in Series compared to 1 battery with 48 Volts
- 1/4 the weight
- Less wires, less balance issues
- No filling, no spilling, no maintenance
- Up to 45 miles longer range
- 10x longer lifespan (>3500 life cycles)
- Faster charge (full charge in 5 hours or less)
- Internal BMS (Battery Management System)
- 5 Year Warranty and amazing customer support

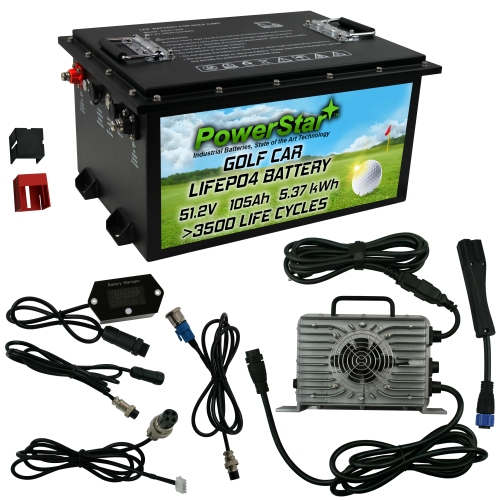

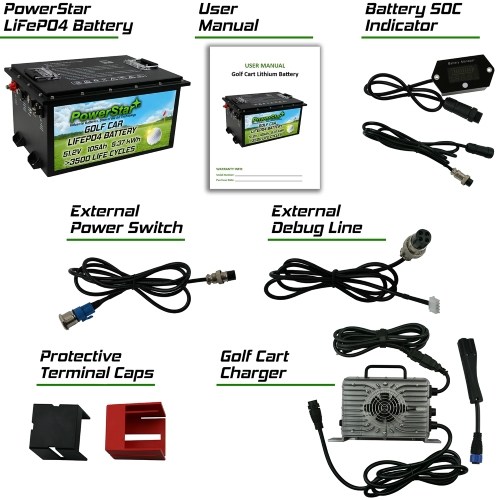

INCLUDED IN PACKAGE
- PowerStar LiFePO4 Battery
- Protective Terminal Caps
- PowerStar LiFePO4 3-Pin Triangular E-Z-GO RXV Charger
- External Control Switch
- Battery SOC Indicator
- External Debug Line
-User Manual
(MOUNTING BRACKET AND HARDWARE NOT INCLUDED)
PowerStar 51.2 Volt 105Ah LiFePO4 Battery
For E-Z-GO RXV Golf Carts
Model= MC51105P
Nominal voltage= 51.2V
Nominal capacity= 105Ah
Stored energy= 5.37 kWh
Life cycles= >3500 times
Self discharge= Max 3% per month
Cell combination= 1P16S
Cell model= LF105 (3.2V 105Ah)
Casing material= Stainless steel
Weight= 101.4 lbs (46 k g).
Dimensions= (L*W*H) 20.67 x 12.99 x 9.84 inches
(52.5 x 33 x 25cm)
IP Rate= IP67
Warranty= 5 years

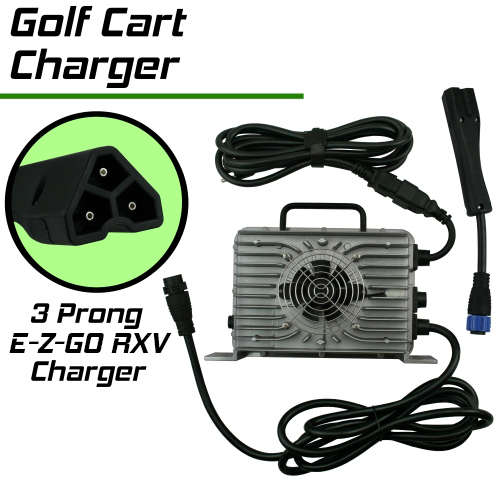

PowerStar 58.4 Volt 22A LiFePO4 Charger
For E-Z-GO RXV Golf Carts
Model= JZ5822-LFP
Use= 16S LiFePO4 Battery;
3-Pin Triangular E-Z-GO RXV Charger
Output Voltage= 58.4V , Input Voltage= 90-260Vac
CC (Constant Current) Output Current= 22A
Max Output Power= 1250W
Transition Current= Input, 5A / Vout, 58.4V
CV (Constant Voltage)= Vout, 56V
AC Input Voltage Frequency= 47～63 Hz
Standby Input Power= ≤20W
Power Efficiency= ≥91%
Warranty= 5 years
Power your cart battery on and off from the comfort of your seat!
This external power switch has more than enough length to install on the dash of your cart. It's as simple as pressing and holding the button for 3 seconds!
There's no need to open the battery compartment, or get your voltage tester!
This state of charge (SOC) indicator turns on and off with the push of a button, can easily remain connected to your battery, and even has the length to be installed on your dash.
Reads SOC and voltage.
Charging made simple! Once the battery is wired in, all you have to do is use the included 3 prong golf cart charger. The charging program consists of 3 steps: constant current, constant voltage, and float charging.
- Over-voltage protection (The charger output voltage does not exceed set the maximum charging voltage of the battery).
- Overload protection.
- Current limiting protection (The charger output current does not exceed a set battery charge current).
- Reverse polarity protection.
- Short circuit protection.
- Over-heating protection (The inside temperature＞80℃, Reduced output current＞90℃, Automatic Shutdown, The inside temperature < 60℃ returns to normal).
Standard charge time= 5 hours
Explanation of Charger LED Status
Powerstar 51V Golf Cart Replacement Battery + Charger with 3-Pin Plug for 48V EZGO RXV Golf Carts
